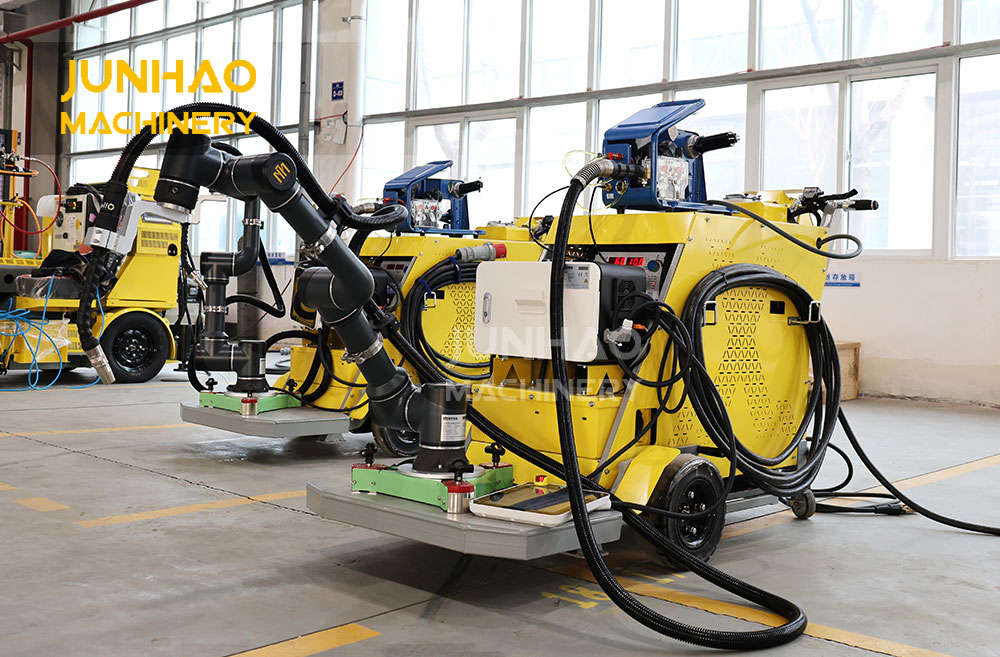

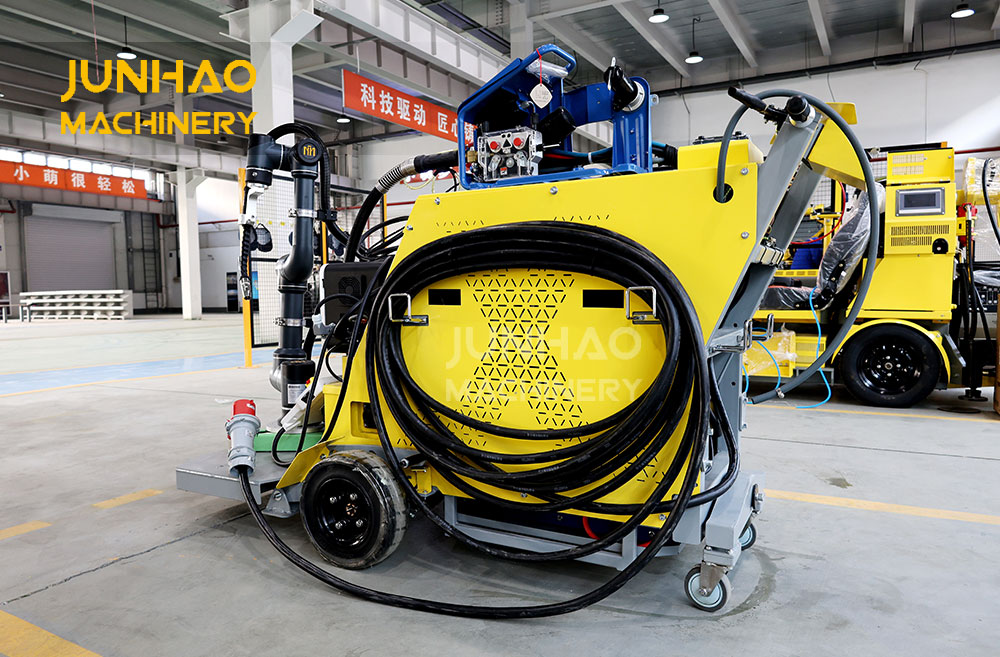

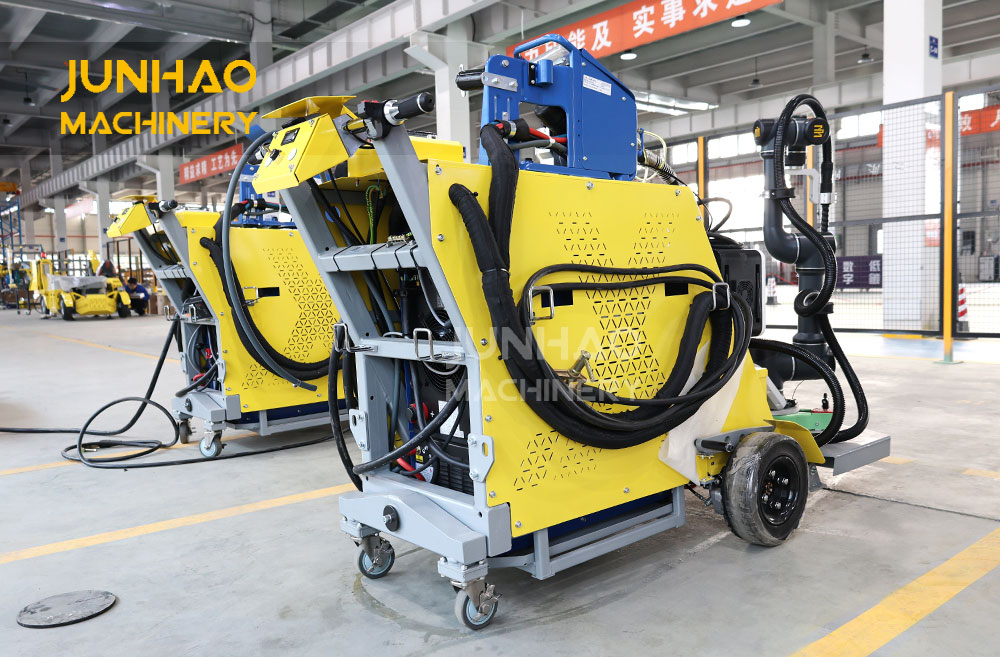

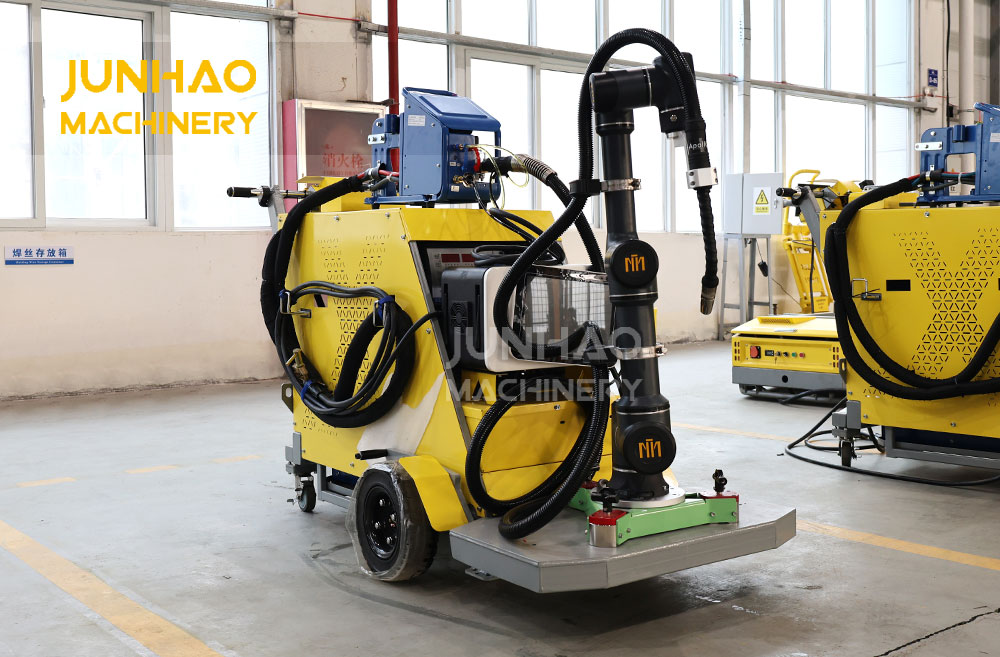

Self-propelled Full-scenario Small-area Welding Robot
Maximum Arm Span: 900mm
Welding Wire Specification: Welding Wire Diameter: ф0.8 mm ~ ф1.6 mm
Welding Method: Gas Metal Arc Welding (GMAW)
Service hotline:
13988886666
Product Details
Product Specifications
| Name | Self-propelled Full-scenario Small-area Welding Robot |
|---|---|
| Model | WMM-ZLHJ-C900 |
| Net Weight | 369KG |
| Dimensions | 1915mm*800mm*1415mm |
| Working Radius | 900mm |
| Battery Specifications | 48V 15AH Lithium Iron Phosphate Battery |
| Number of Batteries | 1 |
| Maximum Safe Travel Speed | 4km/h |
| Cruising Range | 15-20 Km (Winter) / 20-30 Km (Summer) |
| Maximum Vertical Welding Height | 1385mm |
| Human-Machine Interaction (HMI) | 12-inch Teach Pendant |
| Repeat Positioning Accuracy | ±0.02 mm |
| Welding Method | Gas Metal Arc Welding (GMAW) |
| Welding Positions | Horizontal Welding, Flat Welding, Vertical Welding, Overhead Welding |
| Welding Wire Specification | Welding Wire, Diameter: ф0.8 mm - ф1.6 mm |
tags: Large scale mechanical equipmentWelding Robot, Self-Propelled, GMAW, Compact Design, Battery Powered
